BIP EvoCore® T Biopsy Needle

The BIP EvoCore® T Biopsy Needle is intended for removal of soft tissue samples for histological examination.
It is intended to be used only with a compatible reusable biopsy device.
It is intended for single-use and for transient invasive application.
With WingTip-Trocar® tip.
Compatible with BIP EvoCore® and BARD® Magnum™ biopsy devices, and BIP Coaxial Cannula CC / CC-MR.
Indications are anomalies in soft tissues as breast, prostate, liver, kidney, lung or thyroid.

product request
Categories: , , , ,

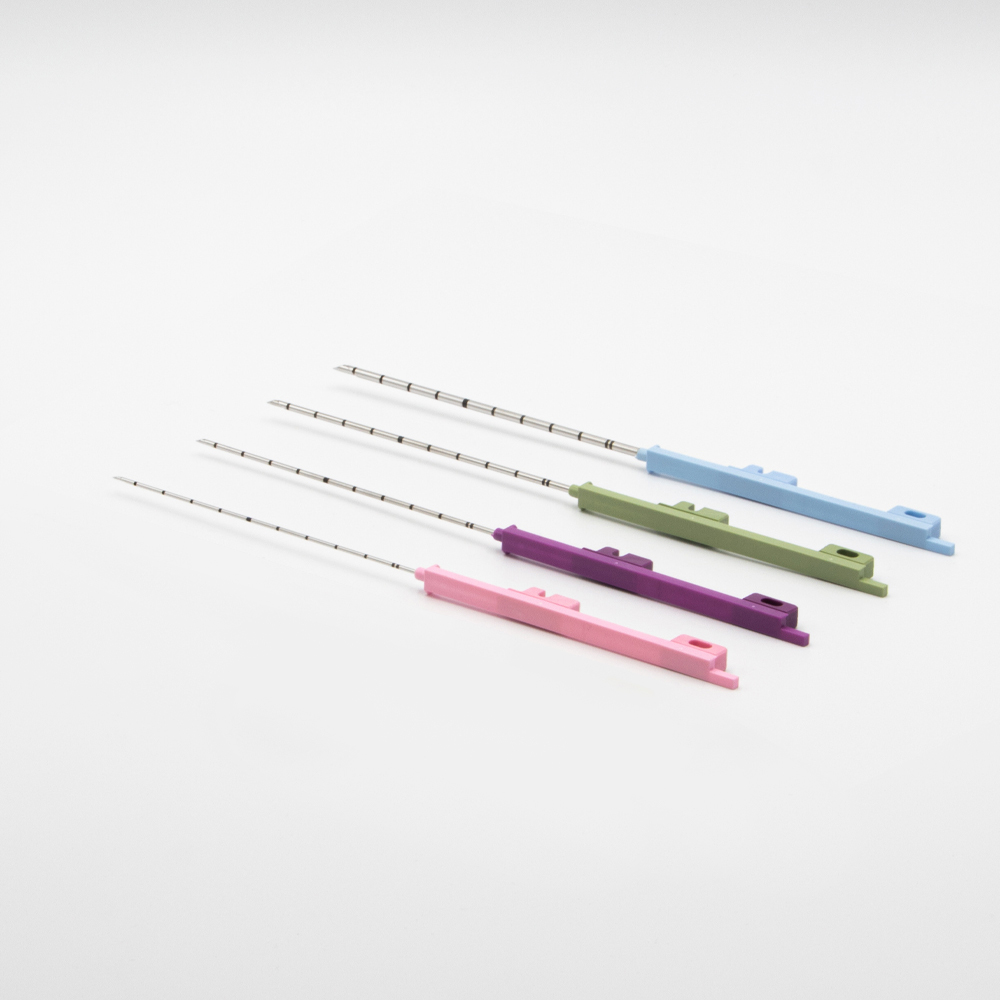

The BIP EvoCore® T biopsy needle is made of medical-grade stainless steel and consists of an inner stylet with 19 mm sample notch and WingTip-Trocar® tip, an outer cannula and a protective hose connected to the plastic needle holder. The outer cannula is equipped with centimeter depth marks for direct visual assessment of insertion depth.
The biopsy needles are sterile, available in different sizes (12G – 18G) and are color-coded according to diameter.

Benefits

  • Better biopsy sample results:
    by 3D rotation loop of the cannulas (special grinding at tip) for optimal biopsy quality.
  • Optimized tissue penetration and increased target precision:
    by WingTip-Trocar®
  • Safe use:
    Patented needle protection ensures safe handling, sterile insertion and prevents possible contamination between the device and cannula.
Here you can find:
instructions for use

Bestellnummern

Diameter
 Length A
in mm
 Sample notch
in mm
 Color code
biopsy needle		 Compatible with Package unit
in pieces
EC12100T 12G (2,76mm) 100 19 CC12100 / CC12100MR 10
EC12130T 12G (2,76mm) 130 19 CC12130 / CC12130MR 10
EC12160T 12G (2,76mm) 160 19 CC12160 / CC12160MR 10
EC12200T 12G (2,76mm) 200 19 CC12200 / CC12200MR 10
EC12250T 12G (2,76mm) 250 19 CC12250 / CC12250MR 10
EC14100T 14G (2,10mm) 100 19 CC14100 / CC14100MR 10
EC14130T 14G (2,10mm) 130 19 CC14130 / CC14130MR 10
EC14160T 14G (2,10mm) 160 19 CC14160 / CC14160MR 10
EC14200T 14G (2,10mm) 200 19 CC14200 / CC14200MR 10
EC14250T 14G (2,10mm) 250 19 CC14250 / CC14250MR 10
EC16100T 16G (1,65mm) 100 19 CC16100 / CC16100MR 10
EC16130T 16G (1,65mm) 130 19 CC16130 / CC16130MR 10
EC16160T 16G (1,65mm) 160 19 CC16160 / CC16160MR 10
EC16200T 16G (1,65mm) 200 19 CC16200 / CC16200MR 10
EC16250T 16G (1,65mm) 250 19 CC16250 / CC16250MR 10
EC18100T 18G (1,25mm) 100 19 CC18100 / CC18100MR 10
EC18130T 18G (1,25mm) 130 19 CC18130 / CC18130MR 10
EC18160T 18G (1,25mm) 160 19 CC18160 / CC18160MR 10
EC18180T 18G (1,25mm) 180 19 CC18180 / CC18180MR 10
EC18200T 18G (1,25mm) 200 19 CC18200 / CC18200MR 10
EC18250T 18G (1,25mm) 250 19 CC18250 / CC18250MR 10
